Name: 12m Mounting Height Zhaga Book 18 010v Dimming HNS151HB 30mA IP65
Brand: hyanll
Price: 1 USD

Brand Name : hyanll

Model Number : HNS151HB

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 20000 per month

Delivery Time : 3~4 weeks

Packaging Details : 45*30*23cm

Usage : UFO, highbay light etc.

IP rating : IP65 level

Name : Zhaga book18 microwave motion sensor

Output : 0~10V dimming

Size : ∅ 50mm

Product : dimming motion sensor

Contact Now

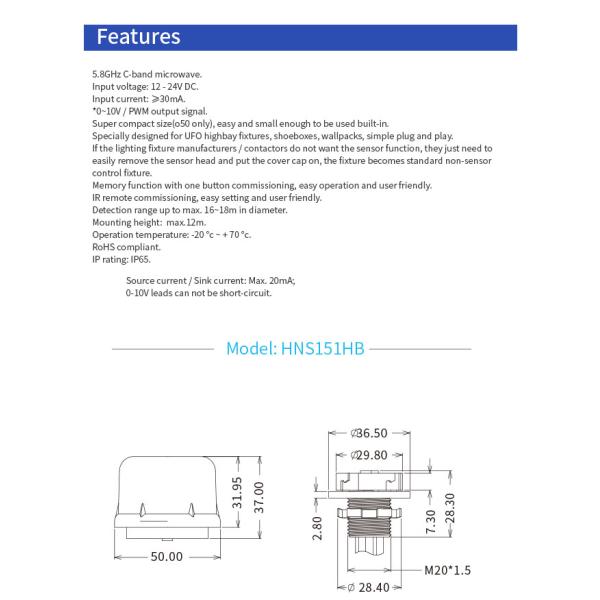

Model: HNS151HB Connecting with Zhaga book 18 socket

Tri-level dimming motion sensor high bay version max. 12m mounting height

Features:

Specially designed for UFO highbay fixtures, shoeboxes,wallpacks, simple plug and play.

If the lighting fixture manufacturers / contactors do not want the sensor function, they just need to easily

remove the sensor head and put the cover cap on, the fixture becomes standard non-sensor control fixture.

Parameters:

Input	DC Input Voltage	12V DC
Output	Signal	0-10V DC dimming
Output	Wiring	Zhaga Book 18 connecting base
Sensor Parameters	Operating Frequency	5.8 GHz C-band
	Hold time	T3s /30S/90S/5min/10min/30min
	DIM Level	0%/ 10%, 30%, 50%
	DIM off	10S/5min/10min/30min/1h/+∞
	Sensitivity	25%/50%/75%/100%
	Daylight Sensor	2lux/10Lux/25Lux/50Lux/100lux/300lux/ Disable
	Detecting Radius	See detection pattern
	Mounting Height	Up to 12m
	Detecting Angle	150°(wall mounting) and 360°(ceiling mounting)
Operating Environment	Operating Temperature	-20℃-+70℃

12m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65
